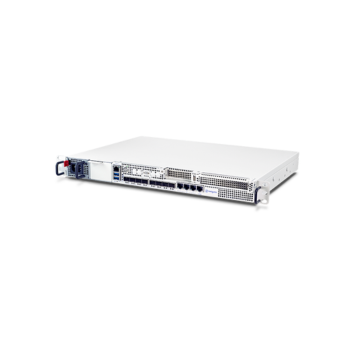

Netgate 8300 BASE pfSense+ Security Gateway

Hardware Specifications:

1. CPU: Eight Core 2.0 GHz Intel Xeon CPU. Delivers 36 Gbps routing and over 26 Gbps of firewall throughput
2. Network Ports: 4 Nos of 1Gbps Ports, 3 Nos of 2.5 Gbps and 4 Nos of 10Gbps Ports.
3. Expandability: 1 x PCIe 3.0 x8 port for half-length low profile cards and 1 xPCIe 4.0 x16 port for full-height three-quarters length cards
4. Storage: 512 GB NVMe 2280 M-Key M.2 SSD
5. Memory: 16 GB DDR4, ECC, 2400MHz via 2x 8 GB (expandable to 32 GB via 2x 16 GB UDIMM)
6. Power: Dual hot-swappable PSU bays. 1 x Internal 500W PSU (hot-swappable) included, 110V/240V AC input
7. Cooling: Active - 7x chassis fans at the rear of the enclosure

Software Features

Router:

• Policy-based routing
• Multiple IP addresses per interface
• Multiple WAN connections (with load balancing and failover)
• Complex NAT mapping (outbound and inbound)
• Concurrent IPv4 and IPv6 support
• Optional multi-node High Availability (HA) clustering
• Dynamic routing protocol support [w/pkg]

Firewall, Attack Prevention, & Content Filtering:

• Extensive firewall rules
• Stateful filtering & packet inspection
• Per-interface configuration
• Ethernet (layer 2) rule-based packet filtering
• IP/DNS-based filtering and blacklisting [w/pkg]
• IDS/IPS with Snort-based packet analyzer [w/pkg]
• Layer 7 application detection and blocking [w/pkg]
• Reverse proxy [w/pkg]
• Geo/country blocking, IP block lists [w/pkg]

VPN:

• Site-to-site and remote access VPNs
• IPsec, OpenVPN, WireGuard®
• Split tunneling
• IPsec policy-based and route-based protocol support
• OpenVPN Data Channel Offload (DCO)
• Intel IPsec Multi-Buffer (IIMB)
• Intel QuickAssist Technology (QAT)

User Authentication & System Security:

• User and group-based privileges
• LDAP authentication
• Automatic lockout after repeated attempts
• Optional key-based SSH access
• Traffic and bandwidth shaping
• Captive portal with user data transfer quotas
• External RADIUS authentication [w/pkg]

Configuration:

• Setup wizard for initial configuration
• Encrypted automatic backup to Netgate server
• Easy configuration backup/restore
• Multi-language support

Monitoring & Reporting:

• Customizable dashboard with widgets
• Local monitoring graphs
• Remote logging
• Network usage monitoring [w/pkg]
• Network diagnostics [w/pkg]
