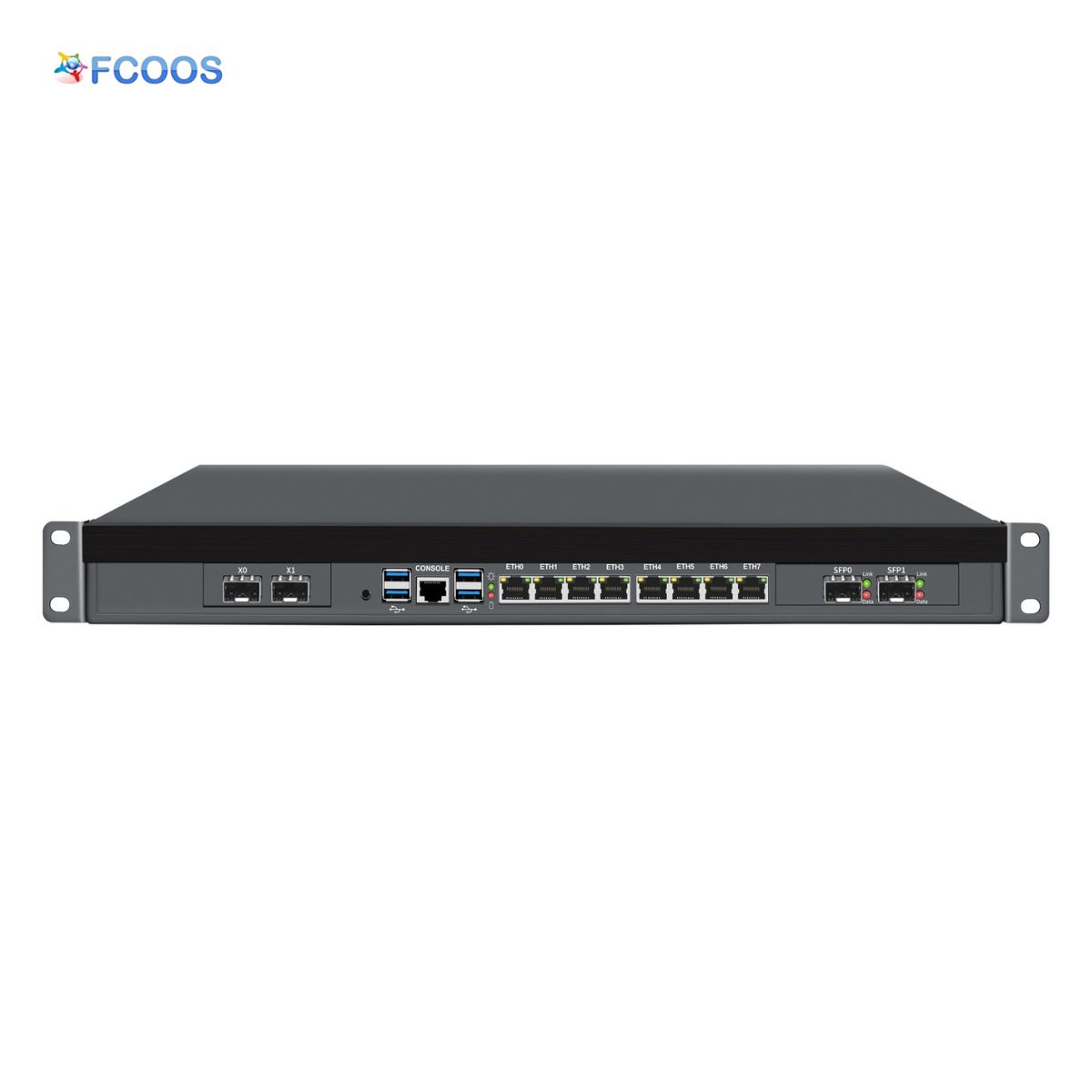

FF-RKN-E5-4P - Key Features

• Chipset: Xeon 16 Core 2.2 GHz (8th/9th Gen Intel® Core™ / Xeon® E processors)
• Memory: DDR4 SO-DIMM up to 64GB, 2666 MT/s
• Storage: 2× SATA 6Gb/s, 2× M.2 Key-M 2280 SSD
• Networking: 8× RJ45 1GbE ports
• USB: 4× USB-A 3.0 (front panel)
• Console: 1× RJ45 COM
• Display: 1× VGA / 1× HDMI (reserved)
• Expansion:
  • 1× PCIe x16 (x8 rate)
  • 1× PCIe x8 (x4 rate)
  • 1× M.2 Key-E 2230 (PCIe/USB)
  • 1× M.2 Key-B 3052 (USB signal)
  • 1× mPCIe (PCIe/USB signal)
• Cooling: Active cooling with 1× CPU fan + 2× chassis fans
• Chassis: 440 × 255 × 45 mm; Weight: 3.65 kg (net), 4.50 kg (with accessories)
• Power: 80V–264V AC input with PFC, output DC 24V
• Environment: Operating 0–50℃; Humidity 5–90% RH (non-condensing)

Application Scenarios

• Firewall & Security Gateway: Ideal for pfSense/OPNsense, UTM, and IDS/IPS applications
